Minkowski Question Mark

special-functions · 37 views

special-functionsfractal/singular

What It Is

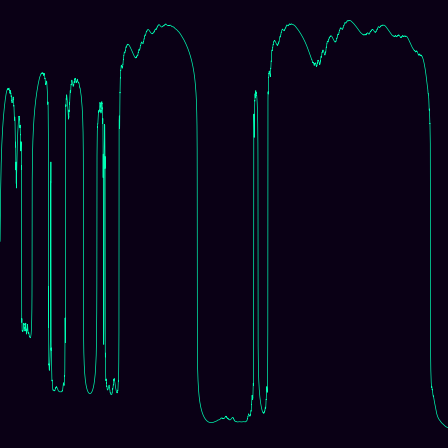

Numerical derivative ?'(x) of Minkowski's question-mark function, sampled on a uniform grid in a random sub-window of (0,1). ?(x) is continuous, strictly increasing, and singular (derivative zero almost everywhere): its derivative is a Cantor-like measure concentrated on rationals. Emitting d?/dx via finite differences exposes that structure as a heavy-tailed signal --- mostly tiny values where ?(x) is flat, with sharp bursts where ?(x) jumps at rational breakpoints. Bijects quadratic irrationals with rationals via the continued-fraction expansion ?(x) = 2 * sum_{k>=1} (-1)^(k+1) / 2^(a_1 + ... + a_k) where [a_0; a_1, a_2, ...] is the continued fraction of x. Different pathology from Cantor's Devil's Staircase --- singularity rooted in continued-fraction arithmetic rather than ternary-Cantor geometry. Raw ?(x) emission was retired 2026-05-18: monotone-increasing values collapsed to a near-linear ramp under [0,1] normalization, becoming pixel-identical to Primes / Partition Function in every rank-based geometry.

Interpretation

Standard analysis sees: heavy-tailed; right-skewed; multifractal; low-dimensional; nonstationary / drifting. The atlas additionally detects Attractor Reconstruction:lyap_entropy. It sits beside Geomagnetic ap Index in the atlas (standard-bank rank 35) — a neighbor conventional features miss.

What standard analysis sees

tail heaviness0.86

asymmetry0.92

occupancy0.26

short-range corr0.56

long-range memory0.72

spectral colour0.45

periodicity0.49

complexity0.55

time-irreversibility0.25

volatility clustering0.55

multifractality0.98
